A0053
10+ 元素
锂、氧化锂及其他关键元素
1.8千克
重量
150*230*125毫米
尺寸
优势介绍
-

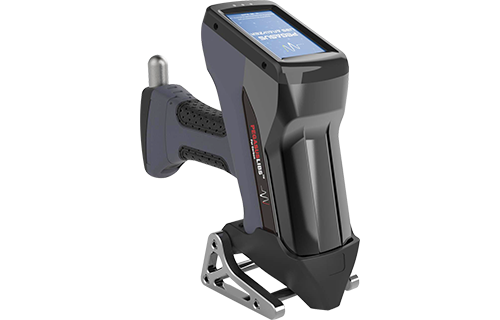

手持LIBS光谱仪轻巧紧凑，重量仅为1.8千克。
-
它采用高功率微型纳秒激光技术，结合自主研发的光谱去噪、PLS、PCA等智能算法。
-
操作人员经过简短培训后即可在现场使用，并能快速完成矿物中成分的定性和定量分析，如辉石、云母、花岗岩、磷酸铝云母石等。
参数
| Technology | Based on plasma emission spectroscopy technology, no electrical high XRF radiation hazards |
| Host(length*width*height) | 150*230* 125mm |
| Host weight | 1.8Kg, including battery |
| Macro camera | Integrated CCD macro camera for marking measurement locations |
| Power supply | Bonded Ion Battery, 168V, 43Wh Portable and Desktop Charging Kit |
| Standard hydrogen cylinder | Disposable nitrogen cylinder, purity: 99.99% or higher |
| Data transmission | 24G/5.0GHz 80211ac/n/b/a wireless LAN, can upload data to user server |
| Language | Simplified and Traditional Chinese, English, Japanese, Korean,Russian, Italian, French, etc. |
| Waterproof performance | IP54 (splash-proof, dust-proof) |
| Bluetooth | Bluetooth 4.1, supports data transmission and printing functions |
| Display | 4.0-inch resistive touch screen (optional 4.3-inch capacitive touch screen) |
| Memory/data storage | 16GB industrial-grade storage, capable of saving no less than one million test results |
| Laser | Class 3B, 1064nm laser |
| Spectrometer | <0.1nm resolution, sensitivity: ≥261,000; signal-to-noise ratio: ≥300:1 |
| Global Positioning System | Built-in GPS module can locate and record test locations |
| Multiple test mode | Improve accuracy by averaging multiple single results |
| Matrix | Lithium ore, rock, lithium battery cathode material, pole piece,glass, lithium-rich electrolyte (aluminum gray) |
| Test element | Lithium, lithium oxide, and other major elements (depending on the material being tested) |
| Sample type | Blocks, tablets, powder |
| Detection limit | Li:10ppm, other elements 0.05%-0.1% |
| Database | Built-in spectral analysis curves for various lithium ores and battery materials, glass, and aluminum ash |
| Operating system | Linux |
| Operating environment | 32 ~ 100° F (0 ~40°C) 40 ~95° F (5 ~35°C) recommended |
| Support software | Vela soft PC software |
| Safety | Password protection, physical laser interlocking safety switch,handle safety strap, lightweight soft shell backpack |
| Original factory warranty | One-year factory warranty on critical parts |
| Extended warranty | Extended warranty available with purchase |
| Preventive maintenance (done by customer) |
Clean the sample chamber using the instrument cleaning kit Use the standards provided Single point calibration using standards to improve accuracy |
| Portable bluetooth printer | Automatic matching, test results can be printed directly |
| Laser safety glasses | 190-400nm/800-1100nm,OD4+ |
| Large-capacity argon gas cylinder (optional) | 0.25L capacity, reusable, output pressure <500psi, purity: 99.99% or higher |
