XRF手持分析仪（矿石型号）

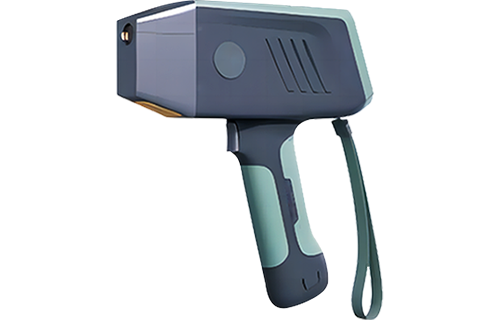

K-600 便携式矿物分析仪足够坚固，能够在最恶劣的环境中执行苛刻的分析应用。它提供准确、可重复的结果，使用户能够实现更高的生产力和快速的投资回报。K-600 便携式矿物分析仪足够坚固，能够在最恶劣的环境中执行苛刻的分析应用。它提供准确、可重复的结果，使用户能够实现更高的生产力和快速的投资回报。

信息

K-600（矿石模型）

30元素

矿石特殊版本分析软件

1.6千克

质量轻

220*150*220毫米

体积

优势介绍

1. 个性化定制工作模式多种矿样模式可供选择，且可自由添加无限数量的模式，根据客户需求定制工作模式。
2. 充分挖掘矿山价值高清摄像头可以更直观地观察到检测到的矿脉或矿点，准确管理和控制采矿过程，并随时检测矿石品位。
3. 精确快速分析原矿、精矿和尾矿在矿物加工过程中的表现为矿石品位确定、矿物交易、加工和再利用提供价值判断依据。
4. 环境监测监测和检测矿山周围土壤中的重金属，评估矿山环境的恢复情况，并最大程度地监测矿山周围的环境。

参数

Main configuration	1. 1 set of ore analyzer host; 2. 1 standard sample; 3. 2 original rechargeable carp batteries; 4. Charging stand and power cord: 5. 1 U disk (32G): 6. 5 pieces of reinforced polypropylene film; 7. Standard portable A moisture-proof and shock-proof box.
Standard mode	Ore mode; optional modes: alloy analysis mode, soil analysis mode
Self-diagnosis function	The instrument can automatically diagnose hardware, software, network, battery, etc. and generate logs to facilitate quick troubleshooting.
operating system	Window CE60 operating system, safe and secure
Test Methods	The basic parameter method supports the empirical coefficient method to correct the start of the test by touching or pulling the trigger. There is no need to pull the trigger for a long time during the test process. According to customer needs, the sample can also be tested by keeping the trigger pressed.
filter	Equipped with 8 filters, which can be automatically switched according to the test elements;
excitation source	High-power miniature straight plate X-ray tube, W target, 4W high-power X-ray tube, tube voltage 50KV, maximum current up to 100 uA; using KMX technology, higher X-ray count rate, ultra-low electronic noise design before each test , no external standards required, automatic energy calibration verification;
detector	American Moxtek Si-pin (6mm2 American Amptek Si-pin(25mm2 German KETEKSDD detector
Detect elements	Can be used for metal elements in ores and soil environments, Mg, AI, Si, P,S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Hg, Se, Au, Br, Pb, Bi, Zr, Nb, Mo.Ag, Cd, Sn, Sb, Re, Ir, Pt, Hg, Ru, Rh, Pd and other elements. (Red is SDD detector configuration)
